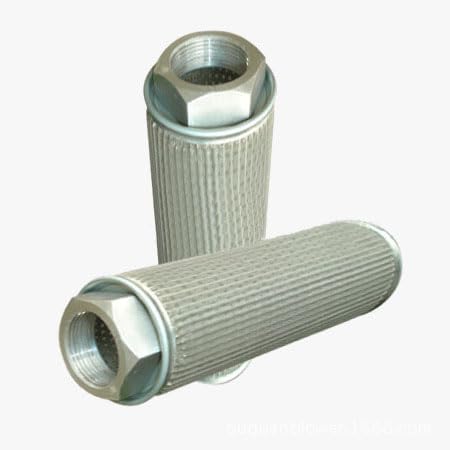

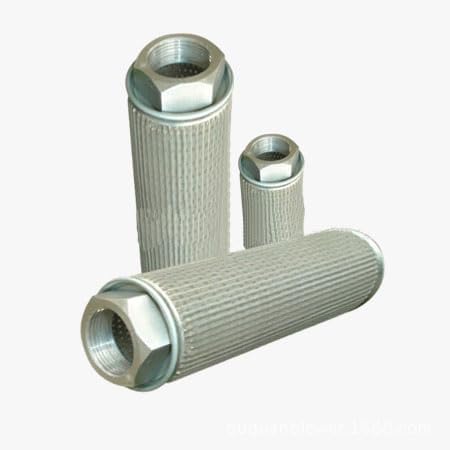

Hydraulic Suction Filter MF‑12 – 1½″ PT Thread, Inline Intake Cartridge for Hydraulic Oil Systems and CNC & Lubrication Systems

The MF‑12 hydraulic suction filter is an inline inlet cartridge designed for suction lines in hydraulic pumps, CNC machine lubrication systems, and oil reservoir pick-up setups. Hydraulic Suction Filter MF‑12 Built with a 1½″ PT threaded connection, 84 mm outer diameter, and flow capacity up to 285 L/min, it features a 100‑mesh stainless steel screen (~150 µm) to intercept solid debris via purely mechanical filtration. The MF‑12 Durable & Reusable – Made from metal housing and stainless steel mesh; cleanable and long-lasting.

• Model Number : MF‑12 (also MFS‑12 submerged variant)
• Inline Suction Protection – Installs at oil intake port to prevent debris from entering pumps or hydraulic circuits.
• High Flow Capability – Supports up to 285 L/min with minimal system resistance thanks to 100‑mesh stainless screen.
• Connection Thread (PT) : 1½″
• Filter Mesh :100‑mesh (~150 µm openings)
• Material :Stainless steel mesh and metal housing
• Installation : Inline suction-line or reservoir pickup
• Installation : Inline suction-line or reservoir pickup Maintenance Easy to clean or replace as needed
• Application Hydraulic systems, CNC lubrication, pump inlet protection
